TL;DR:

• Electrical diagnostics help fleets prevent roadside breakdowns by analyzing fault codes, voltage trends, and CAN bus signals. Implementing systematic workflows and advanced tools allows technicians to identify root causes quickly, reducing downtime and repair costs. Mobile diagnostic services bring quick, on-site solutions, enhancing vehicle availability and fleet efficiency.

Electrical diagnostics turn vehicle-generated signals into early-warning actions that reduce downtime, lower repair costs, and extend component life across your entire fleet. By reading diagnostic trouble codes (DTCs), tracking voltage trends, and monitoring CAN bus signals, your maintenance team converts raw vehicle data into scheduled work orders before a truck misses a route. The role of electrical diagnostics in fleets is no longer a shop-floor nicety; it is a core operational capability.

Three immediate benefits fleet managers see first:

• Fewer roadside no-starts: DTCs stored in the ECU give technicians advance notice of charging and starting system faults before dispatch.
• Lower repeat-repair rates: Accurate root-cause diagnosis from voltage-drop and signal data stops the parts-swapping cycle that inflates labor costs.
• Earlier detection of systemic faults: Trending DTC patterns across vehicle groups flags harness or sensor batches failing fleet-wide, not just on one truck.

How does electrical diagnostics fit into modern fleet operations?

The core functions of fleet electrical diagnostics are fault-code capture and history review, voltage and state-of-health (SoH) monitoring, CAN bus health checks, and wiring/harness inspection triggers. Each function maps directly to an operational metric your finance team already tracks.

Fault-code history tells you when a problem started, not just that it exists. Voltage trending during crank events predicts battery and alternator degradation weeks before a no-start. CAN bus health monitoring catches communication errors that show up as phantom sensor faults, saving hours of misdirected labor. Harness inspection triggers from thermal imaging or resistance data prevent the kind of intermittent wiring failures that cost fleets thousands in misdiagnosed repairs.

Those failures translate directly into mean time to repair (MTTR), parts spend, and SLA penalties. A truck sitting at a dealer for electrical diagnosis is not generating revenue. The practical benefits that justify a diagnostics pilot:

• Reduced MTTR through faster root-cause identification
• Lower parts spend by eliminating speculative component replacement
• Fewer SLA penalties from unplanned mid-route breakdowns
• Improved dispatch readiness through pre-route vehicle health checks
• Better warranty recovery by documenting fault history with timestamps

How diagnostics prevent downtime before it hits your routes

The most expensive electrical failure is the one that happens at mile marker 200 on a time-sensitive delivery. Three failure paths account for the majority of preventable roadside events in commercial fleets.

No-start/no-crank scenarios are almost always preceded by a stored code. About two out of three roadside electrical breakdowns had a diagnostic trouble code in the vehicle’s ECU at least two weeks before the failure, providing advance warning. Reading that code during a pre-route scan costs three minutes. The tow and repair bill costs three to five hours of lost productivity plus towing fees.

Intermittent CAN communication faults are harder to catch because they do not always trigger a persistent code. Moisture ingress or harness vibration causes CAN errors that appear as downstream sensor or module faults, leading technicians to replace sensors that are working fine. The real fault sits in a connector 18 inches away. Oscilloscope traces of CAN bus activity reveal the dropout pattern that a basic scan tool misses entirely.

Charging and alternator failures follow a predictable voltage decay curve. A battery that tests acceptable under static conditions can still cause transient faults during high-load crank events. Capturing crank voltage dynamically, rather than relying on a static state-of-health reading, catches the degradation before it strands a driver. Premier Fleet Repair’s technicians use alternator failure indicators and load-test data together to confirm whether the battery, the alternator, or the wiring between them is the actual cause.

Pro Tip: Start your diagnostics program with the vehicles that generate the most emergency dispatches or no-start calls. Pull their DTC history for the past 90 days and look for codes that appeared two or more weeks before each event. That analysis tells you exactly which systems to monitor first and builds the cost-justification data for a broader rollout.

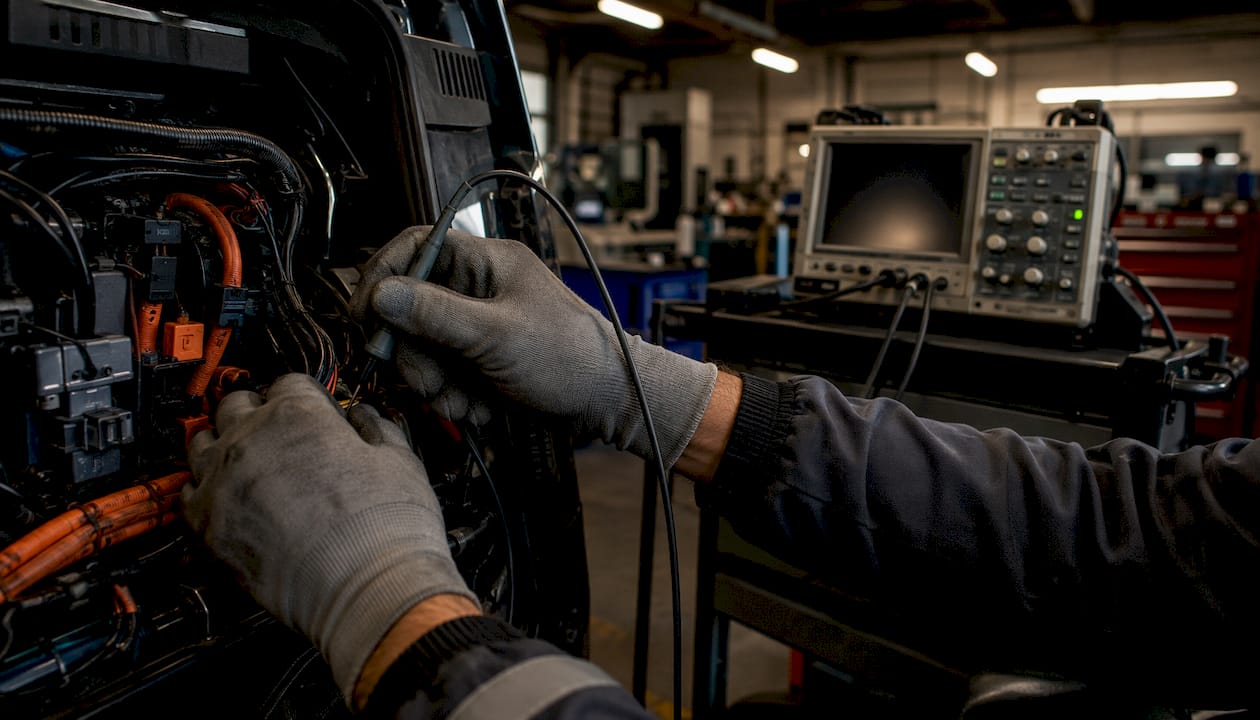

What changes when you diagnose electric and hybrid commercial vehicles?

EV and hybrid commercial vehicles share the same diagnostic logic as their ICE counterparts, but the priorities and safety requirements shift significantly. The stakes around high-voltage (HV) systems demand a different level of preparation before any technician opens a circuit.

EV/hybrid diagnostic priorities:

• Battery pack state of health (SoH) and state of charge (SoC) trending over time
• HV isolation resistance tests to confirm the pack is not leaking voltage to the chassis
• Inverter and DC-DC converter performance under load
• Battery thermal behavior, including cell-level temperature variance that signals early pack imbalance
• BMS (battery management system) communication codes, which often precede visible performance loss

HV safety checklist before any hands-on work:

• Confirm HV system is de-energized using a calibrated HV isolation tester
• Wear Class 0 or Class 00 insulating gloves rated for the system voltage
• Use insulated tools rated for HV work
• Post lockout/tagout on the HV disconnect before touching any orange-jacketed wiring
• Escalate any work requiring HV connector disassembly to a technician with documented HV certification

For hybrid vehicle maintenance, the diagnostic contrast with ICE vehicles is sharp. ICE fleets deal primarily with alternator output, starter draw, wiring chafe from vibration, and corroded grounds. EV-specific failure modes center on pack cell imbalance, BMS communication dropouts, HV connector corrosion from road salt and moisture, and inverter switching anomalies. Telematics leading indicators differ too: on an EV, a declining SoH trend or increasing charge cycle count is the equivalent of a rising coolant temperature on a diesel. Condition-based monitoring for EVs uses those battery signals as the primary trigger for intervention, not engine hours or mileage alone.

How do telematics and predictive maintenance connect to electrical diagnostics?

Telematics integration is where electrical diagnostics moves from a reactive shop activity to a proactive fleet management capability. The data streams that matter most are OBD-II/J1939 DTCs, voltage during crank, charge output trends, and CAN error counts. A majority of commercial vehicles built after 2024 ship with factory-embedded telematics that stream this data via standard APIs, which means many fleets can start without new hardware.

What condition-based maintenance (CBM) delivers with that data:

• Lead time to failure measured in days or weeks, not hours
• Reduced calendar-based servicing that wastes parts on components still in good condition
• Improved dispatch readiness by flagging vehicles that should not go out before the driver does
• Work-order generation triggered by actual fault signals, not fixed intervals

Predictive maintenance platforms that integrate telematics data often pay back their investment relatively quickly on mid-sized fleets. Virtualized diagnostic routines can also reduce the shop-floor manual testing time that traditional workflows require, by capturing targeted signals remotely before a vehicle is pulled in for physical inspection.

Pro Tip: Integrate one data stream at a time. Start with DTC feeds from your highest-utilization vehicles, validate the false-positive rate over 30 days, then connect the alerts to your CMMS or work-order pipeline. Adding everything at once creates alert fatigue and erodes technician trust in the system.

For a deeper look at predictive maintenance ROI and how to frame the business case internally, Premier Fleet Repair’s guide covers the KPIs and payback timelines in practical terms.

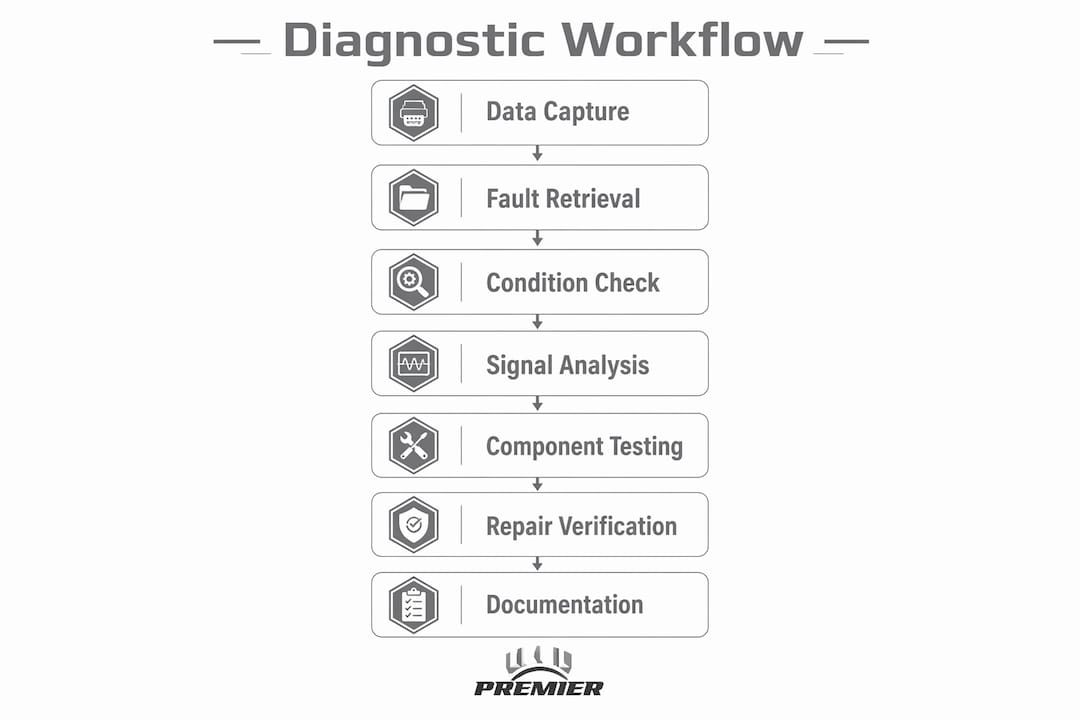

What does a reliable 7-step electrical diagnostic workflow look like?

Systematic troubleshooting reduces diagnostic time significantly compared to random testing approaches. The seven-step workflow below gives fleet technicians a repeatable process that limits part-chasing and produces documented root causes.

1. Data capture: Pull all stored and pending DTCs, freeze-frame data, and DTC history timestamps. Note any codes that appeared more than two weeks before the current complaint.
2. Reproduce the condition: Confirm the fault is active or intermittent under operating conditions. An intermittent fault that cannot be reproduced requires harness inspection before any component replacement.
3. Isolate power and ground: Verify battery voltage under load (crank test), check ground strap resistance, and confirm chassis ground integrity at all major connection points.
4. Load and voltage-drop testing: Run voltage-drop tests across circuits under operating load. A drop exceeding 0.5V across a connection indicates resistance that will cause recurring faults even after component replacement.
5. Oscilloscope and communication check: Use an oscilloscope to verify CAN bus signal shape, starter draw waveform, and alternator ripple. Thermal imaging identifies hot spots from increased resistance in harnesses and connectors that are invisible to a multimeter.
6. Targeted repair: Address the confirmed root cause. Replace or repair only what the test data identifies. Document the repair action against the DTC record.
7. Verification and DTC history closure: Clear codes only after the repair is documented and verified under operating conditions. Confirm the fault does not return during a post-repair drive cycle.

When to escalate to advanced tools:

• Intermittent CAN errors with no persistent code → oscilloscope trace of bus activity and harness routing inspection
• No-start with good battery static voltage → dynamic crank voltage capture under load
• Thermal anomaly in a wiring run → thermal imager before opening the harness
• Any HV system fault on an EV/hybrid → HV isolation tester and certified HV technician

For detailed procedures on heavy-duty truck diagnostics, Premier Fleet Repair’s technician guide covers the specific test points and pass/fail thresholds for commercial vehicle electrical systems.

Pro Tip: Voltage-drop testing and oscilloscope signal-shape analysis find more real faults than component swapping ever will. A connector that passes a resistance check at rest can fail under vibration and load. Always test under operating conditions before condemning a part.

Which tools and skills does your diagnostic team actually need?

The gap between a shop that clears codes and a shop that solves electrical problems comes down to tooling and training. Oscilloscopes and thermal imagers are now required to diagnose multiplexed signals and hidden wiring faults that multimeters and test lights simply cannot reach.

Must-have diagnostic tools and what each reveals:

• Digital multimeter: Voltage, resistance, and continuity checks; baseline for every circuit test
• Oscilloscope: CAN bus signal shape, starter draw waveform, alternator ripple, and injector patterns; catches intermittent dropouts invisible to a meter
• Thermal imager: Hot spots from increased resistance in connectors, harnesses, and battery terminals; finds faults before they cause visible damage
• Battery SoH tester (conductance-based): Dynamic state-of-health under load; more reliable than static voltage for predicting no-starts
• HV isolation tester: Mandatory for EV/hybrid work; confirms pack isolation before any hands-on contact
• Heavy-duty scan tool with J1939/J1708 support: Full DTC access, live data, and bi-directional controls for commercial vehicle ECUs

Software and data skills that matter:

• DTC interpretation beyond the code description: understanding freeze-frame data, readiness monitors, and DTC history timestamps
• Telematics connector configuration for OBD/J1939 data feeds into a CMMS
• Condition-trend analysis: reading voltage and SoH trends over time, not just point-in-time snapshots
• Work-order integration: translating DTC alerts into documented repair actions with closure confirmation

Recommended training and certifications:

• ASE L3 (Light Duty Hybrid/EV) or ASE L2 (Medium/Heavy Truck Electronic Systems) for technicians working on commercial vehicles
• OEM-specific diagnostic software training for the brands in your fleet
• HV safety certification (OSHA 70E awareness plus OEM HV training) before any EV/hybrid hands-on work

The organizational shift that matters most: invest in two or three deeply trained technicians rather than spreading basic scan-tool skills across your entire shop. One technician who can run an oscilloscope trace and interpret CAN bus data resolves in two hours what an undertrained team spends two days chasing.

How do you implement an electrical diagnostics program from scratch?

A 90-day pilot is the right starting point for most fleets. It limits risk, generates real cost data, and builds internal credibility before you commit to fleet-wide tooling and training budgets.

Pilot checklist

• Vehicle selection: Choose 10–20 vehicles with the highest roadside event frequency or the most repeat electrical repairs in the past 12 months.
• Data feeds: Connect DTC streams via OBD/J1939 for each pilot vehicle; capture voltage during crank and charge output where telematics supports it.
• Shop vs. mobile balance: Assign one technician to review DTC alerts daily and one mobile unit capable of on-site diagnosis for vehicles that cannot return to the shop.
• Success criteria: Define before the pilot starts: target reduction in roadside events, no-start rate, and average repair cost per electrical work order.

Sample KPIs

Cost and timeline guidance: Pilot tooling (scan tool, multimeter, basic oscilloscope) for a 10-vehicle pilot typically runs in the low thousands of dollars. Predictive maintenance platforms with telematics integration typically pay back vendor investment on fleets of 50+ vehicles within 3–6 months. Scale from pilot to full fleet typically takes 3–9 months depending on telematics readiness and technician training pace.

Governance rule: Never clear a DTC without a documented repair action tied to it. Codes cleared without resolution mask systemic faults and eliminate the history data that makes trend analysis possible. Cross-fleet pattern detection, where the same code appears on multiple vehicles in the same model year or route group, is one of the highest-value outputs of a mature diagnostics program.

Pro Tip: Review DTC patterns across your pilot vehicles weekly, not just per-vehicle. A P0562 (low system voltage) appearing on five trucks from the same model year within 60 days is a fleet-wide battery batch issue, not five individual problems. Catching that pattern early saves the cost of five separate roadside events.

Premier Fleet Repair mobile diagnostics: a real-world example

Premier Fleet Repair’s mobile service model puts diagnostic capability at the vehicle’s location, which changes the economics of electrical troubleshooting for commercial fleets in Hillsborough, Pinellas, Pasco, Manatee, and Polk Counties.

How a typical mobile electrical diagnostic call works:

• Problem: A fleet operator reports a recurring no-start on a Class 6 delivery truck. The vehicle has been to a shop twice; the battery was replaced both times without resolving the fault.
• Diagnostic approach: Premier Fleet Repair’s technician arrives on-site with a heavy-duty scan tool, oscilloscope, and load tester. DTC history shows a persistent P0562 (low system voltage) and a B-circuit alternator code that was cleared without repair documentation on both prior visits.
• Immediate action: Voltage-drop testing across the charging circuit identifies a corroded ground strap at the chassis connection. Resistance in that connection was causing the alternator to undercharge the battery under load, not a battery or alternator failure.
• Outcome: Ground strap replaced on-site. No tow, no shop downtime, no third battery replacement. The vehicle returned to service the same day.

Premier Fleet Repair serves fleets across Hillsborough, Pinellas, Pasco, Manatee, and Polk Counties, bringing diagnostic equipment and repair capability directly to your yard, job site, or roadside location. The mobile model eliminates towing costs and the multi-day shop queue that compounds downtime for time-sensitive operations.

Key Takeaways

Electrical diagnostics deliver the fastest ROI in fleet maintenance when they are connected to a documented DTC-to-work-order process and supported by technicians trained to use oscilloscopes and load testers, not just scan tools.

The organizational change no one talks about

The fleets that get the most from electrical diagnostics are not always the ones with the best tools. They are the ones that changed how they handle a DTC alert.

The common failure pattern is predictable: a technician clears a code, the truck goes back on the road, and three weeks later it is stranded at a customer site. The code was there. The data was there. But no one owned the process of turning that alert into a documented repair action. That is a workflow problem, not a technology problem.

What actually works in day-to-day operations is limiting the initial alert scope. When a fleet first connects telematics diagnostics, the temptation is to monitor everything. That creates alert fatigue fast, and technicians stop trusting the system within 60 days. Start with the three fault categories that generate the most emergency dispatches in your fleet, build a clear escalation path for each, and celebrate the first time a DTC alert prevents a roadside event. That early win builds the internal credibility that sustains the program.

Aligning incentives matters too. If technicians are measured only on repair throughput, they will clear codes and move on. Tie a portion of shop performance metrics to DTC closure rate and repeat-repair rate, and the behavior changes quickly. The diagnostics program becomes self-reinforcing.

Premier Fleet Repair brings diagnostics to your location

When a truck goes down for an electrical fault, the clock starts immediately. Towing to a shop, waiting for a bay, and then waiting for diagnosis adds hours or days to a problem that a trained mobile technician with the right tools can often resolve on-site in under two hours.

Premier Fleet Repair provides on-site electrical diagnostics and repair across Hillsborough, Pinellas, Pasco, Manatee, and Polk Counties. Technicians arrive equipped with heavy-duty scan tools, oscilloscopes, load testers, and the diagnostic software to pull full DTC history, run voltage-drop tests, and confirm root cause before touching a part. The result is a documented repair with verified closure, not a cleared code and a hope. For fleets managing mixed ICE, hybrid, and EV vehicles, Premier Fleet Repair’s mobile capability covers the full diagnostic range without requiring vehicles to leave service any longer than necessary. Contact Premier Fleet Repair to schedule an on-site diagnostic visit or get a quote for your fleet’s coverage area.

Useful sources for fleet managers and technicians

• Fleet Electrical System Maintenance & Diagnostics — OxMaint: Covers electrical failure trends, DTC history analysis, and the data behind why two-thirds of roadside electrical breakdowns had a prior code weeks earlier. Strong reference for justifying a diagnostics investment to leadership.
• The Art and Science of Electrical Diagnostics on Trucks — TruckingInfo: Practical guidance on oscilloscope use cases and thermal imaging for multiplexed truck systems. Useful for technicians moving beyond basic scan-tool work.
• Predictive Maintenance for Fleet Management — iFactory: Covers AI-driven predictive maintenance ROI, telematics integration, and deployment sequencing for fleets of 50+ vehicles.
• Improve Vehicle Uptime with AI-Driven Electrical System Maintenance — Sonatus: Explains how virtualized diagnostic routines reduce manual shop-floor testing time by capturing signals remotely before physical inspection.
• Predictive Maintenance for Fleets: How It Works — Optivo: Clear explanation of the difference between preventive and predictive maintenance, with practical guidance on DTC feeds, battery SoH monitoring, and telematics integration for mixed fleets.
• Troubleshooting Electrical Systems in Trucks — Fleet Rabbit: Detailed troubleshooting procedures for CAN bus faults, charging system failures, and no-start diagnostics in commercial trucks.
• Understanding Diagnostic Trouble Codes — NYADI: Authoritative primer on DTC structure, freeze-frame data, and readiness monitors; useful for technicians building DTC interpretation skills.
• Electric and Hybrid Vehicle Basics — U.S. Department of Energy AFDC: Primary government source on hybrid and EV system architecture; reference for understanding HV system components and safety requirements.
• Heavy-Duty Truck Diagnostics Guide — Premier Fleet Repair: Practical diagnostic procedures and test-point guidance for commercial vehicle electrical systems, with examples from mobile service calls.
• Predictive Maintenance Benefits for Commercial Fleets — Premier Fleet Repair: KPI framing and case examples for predictive maintenance and condition-based monitoring in mixed commercial fleets.

FAQ

What is the role of electrical diagnostics in fleet management?

Electrical diagnostics capture fault codes, voltage trends, and CAN bus signals from vehicle ECUs to identify developing failures before they cause roadside breakdowns. The role in fleet management is converting that data into scheduled work orders that reduce unplanned downtime and lower repair costs.

What are the 7 steps to automotive diagnosis?

The standard seven-step process moves from data capture and fault-code retrieval, through condition reproduction and power/ground isolation, to load and voltage-drop testing, oscilloscope/communication verification, targeted repair, and final verification with documented DTC closure.

What are electrical diagnostic services?

Electrical diagnostic services use scan tools, oscilloscopes, thermal imagers, and load testers to identify the root cause of electrical faults in a vehicle’s charging system, wiring harness, ECUs, and communication networks. Premier Fleet Repair delivers these services on-site, at the vehicle’s location, across five Florida counties.

What are the five pillars of fleet management?

Fleet management frameworks typically organize around vehicle acquisition, maintenance and repair, compliance and safety, fuel and cost control, and driver management. Electrical diagnostics supports the maintenance pillar directly and feeds data into compliance, safety, and cost-control decisions.

Is fleet management a stressful job?

Fleet management carries real pressure because unplanned breakdowns, driver safety, and delivery commitments all depend on vehicle reliability. Electrical diagnostics reduces a significant source of that stress by converting unpredictable roadside failures into scheduled, documented repairs.
