TL;DR:
- Performing electrical and mechanical tests on the fuel system helps identify failures and prevents unnecessary repairs.
- Using proper tools, safety precautions, and step-by-step diagnosis ensures accurate fault detection at the roadside.
Fuel system issue roadside diagnosis is the process of systematically testing electrical and mechanical components to identify fuel delivery failures before calling for professional repair. Failed fuel pumps cause about 12% of no-start conditions, while dead batteries account for 35% and crankshaft sensor faults 15%. Those numbers matter because they tell you the fuel pump is rarely the first thing to blame. A logical, step-by-step approach, starting with electrical checks and moving to pressure tests, is the fastest way to pinpoint the real fault and avoid an unnecessary replacement.
What tools and preparations are needed for roadside fuel system diagnosis?

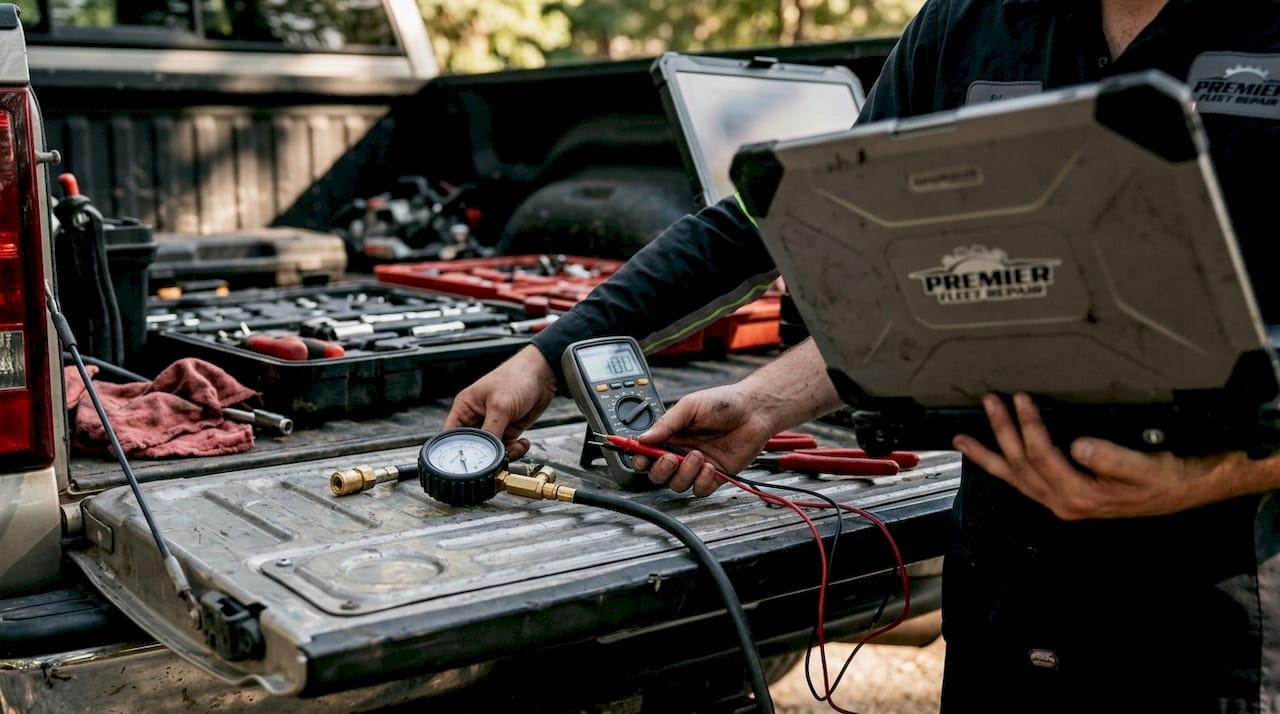

The right tools separate a productive roadside check from a frustrating guessing game. Before you touch anything under the hood, gather these items:
- Multimeter for measuring voltage and continuity
- Fuel pressure gauge with the correct fitting for your vehicle’s fuel rail
- Relay tester or a known-good spare relay that matches your pump relay
- Flashlight or headlamp for working in low-light conditions
- Nitrile gloves and safety glasses to protect against fuel contact and sparks
Beyond tools, you need vehicle-specific information. Pull up the wiring diagram for your make and model so you can identify the correct pump connector wires and relay location. Manufacturer fuel pressure specs vary widely, so confirm the target PSI before you connect a gauge.
Safety is non-negotiable. Relieve fuel system pressure before disconnecting any line by locating the fuel pump fuse, pulling it, and cranking the engine until it stalls. Work in a well-ventilated area, away from open flames or running engines nearby. If possible, have a second person operate the ignition key while you monitor readings at the pump connector or fuel rail. That two-person setup prevents awkward reaches and keeps your attention on the test point.
Pro Tip: Photograph the relay box label before you pull any relay. Relay positions look identical, and swapping the wrong one wastes time and can disable other systems.
How do you perform electrical checks for fuel pump circuit issues?

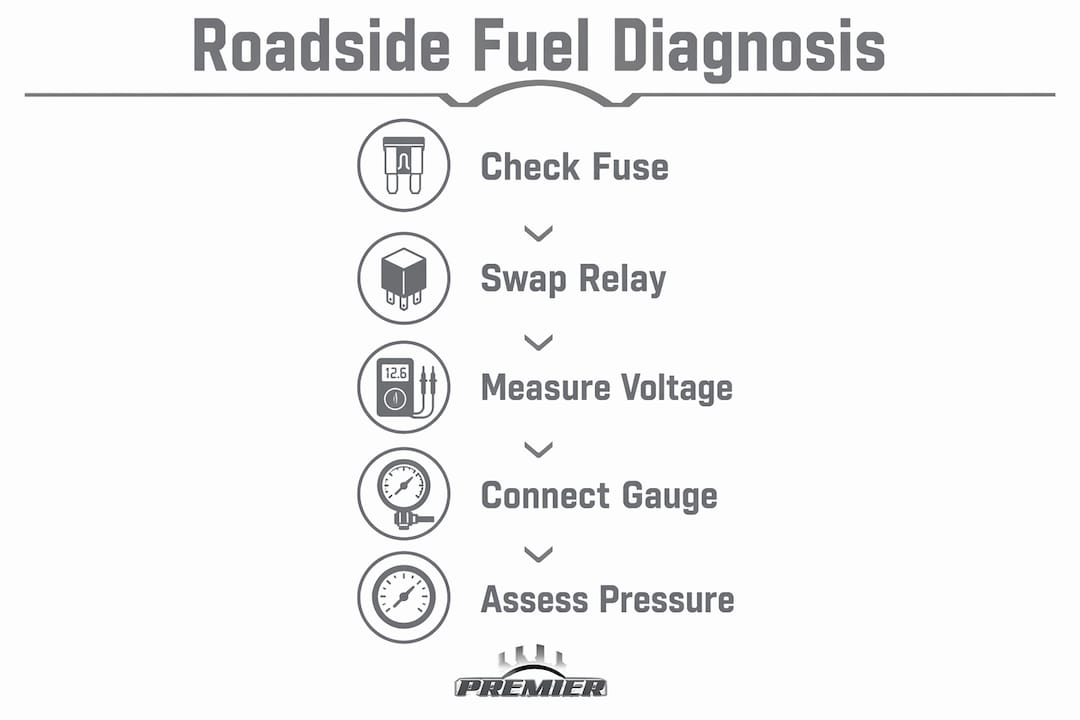

Roadside diagnosis follows an electrical-to-mechanical sequence: verify the fuse and relay first, then check power at the connector, and only then suspect the pump assembly itself. Skipping steps in this order is the single most common reason drivers replace a pump that was never the problem.
Follow this sequence:
Inspect the fuel pump fuse. Locate the fuse in the underhood or interior fuse box using your owner’s manual. Pull it and check for continuity with a multimeter. A blown fuse is the fastest fix on the list, and it costs nothing to check first.
Test the fuel pump relay. Swap the fuel pump relay with an identical relay, such as the horn relay, if they share the same part number. Turn the key to the ON position and listen for a two-second click from the relay socket. No click after the swap points to a wiring or PCM control circuit fault, not the pump.
Check voltage at the pump connector. Disconnect the pump connector at the tank. Set your multimeter to DC voltage. Have your helper turn the key to ON without cranking. The fuel pump primes for 2–3 seconds on key-on, so you must read voltage during that short window. You should see battery voltage (12–14V) at the positive wire. Anything below 10V under load signals a wiring problem.
Perform a voltage drop test on the ground circuit. Place one multimeter lead on the pump connector ground wire and the other on a known chassis ground. A voltage drop above 0.1V indicates a poor ground connection. Poor grounds are routinely misdiagnosed as pump failure, leading to expensive and unnecessary replacements.
Inspect the connector itself. Corroded or pushed-back terminals cause intermittent faults that mimic a dead pump. Clean terminals with electrical contact cleaner and reseat any backed-out pins before drawing conclusions.
Pro Tip: Always test voltage under load, meaning with the pump circuit energized and drawing current. A resting voltage reading looks fine even on a failing circuit. The load test reveals the real condition.
What are the mechanical tests and pressure checks for fuel system issues roadside?
Once electrical checks clear the circuit, a fuel pressure gauge confirms whether the pump and regulator are delivering correctly. Independent shops achieve an 85–90% first-pass accuracy rate for fuel system repairs when they combine pressure testing with relay and wiring checks. That accuracy drops sharply when pressure testing is skipped.
Connecting the gauge and reading pressure
Locate the Schrader test port on the fuel rail. Most port-injected engines have one; if yours does not, use an inline adapter between the fuel line and rail. Connect the gauge, turn the key to ON without cranking, and watch the needle climb. Then crank the engine and note the running pressure.
| Test condition | Healthy reading | Possible fault |
|---|---|---|
| Key ON, engine off | Climbs to spec within 2 sec | Low: weak pump or bad check valve |
| Engine cranking | Reaches full operating PSI | Low: pump wear or clogged filter |
| Engine running, idle | Holds steady at spec | Fluctuating: failing regulator |
| Key OFF, 10-min hold | Drops less than 5 PSI | Large drop: leaking check valve or injector |
A healthy port-injected fuel system holds 30–80 PSI depending on the vehicle. Readings below the manufacturer spec during cranking point to pump wear or a clogged fuel filter. A pressure drop after key-off that exceeds 5 PSI within ten minutes suggests a leaking check valve inside the pump or a leaking injector.
Checking for restrictions
Snap the throttle quickly while watching the gauge. Pressure should spike briefly and then recover. A slow recovery or a sustained drop during acceleration points to a restricted fuel filter or a partially collapsed fuel line. Replace the filter before condemning the pump.
Pro Tip: Direct injection systems run at 1,500–2,000 PSI at the high-pressure pump. Never disconnect a high-pressure line without the correct depressurization procedure and a gauge rated for that pressure. Standard port-injection gauges will fail and cause injury.
What are the immediate actions for drivers facing common fuel issues roadside?
The first thing to accept is that there is no safe or reliable roadside fix for a failed electric fuel pump. Extended cranking or bypass attempts risk damaging the pump further and can create a fire hazard. Your goal roadside is accurate diagnosis, not improvised repair.
Work through this checklist before drawing any conclusions:
- Confirm the electrical circuit first. Check the fuse and relay before assuming the pump is dead. A $5 fuse or a relay swap has resolved countless roadside no-starts.
- Look for fuel leaks. Walk the length of the fuel line from the tank to the engine. A visible leak or the smell of raw fuel near a fitting points to a line or connection problem, not a pump fault.
- Check for contamination signs. Water in the fuel causes rough running and hesitation under load. If the vehicle ran through deep water recently, contamination is a real possibility.
- Try a relay swap. If you carry a spare relay that matches the pump relay, swap it. This takes under two minutes and rules out one of the most common electrical faults.
- Avoid excessive cranking. Cranking more than 10–15 seconds at a time without confirmed fuel pressure overheats the starter and can flood the engine.
Drivers often experience hesitation, surging, or choking under load before a fuel pump fails completely. These warning signs are not random. They are the pump struggling under demand. Note every symptom, including when it happens and at what engine speed, because that information cuts diagnostic time significantly when a technician takes over.
When the electrical checks and relay swap do not restore operation, the vehicle needs professional attention. Note every symptom you observed, the sounds the pump made or did not make, and the voltage readings you recorded. That information is directly useful for the technician who continues the engine diagnostic process and prevents duplicate work.
Key Takeaways
Systematic electrical-to-mechanical diagnosis is the most reliable method for identifying fuel system faults roadside, preventing unnecessary pump replacements and reducing total repair time.
| Point | Details |
|---|---|
| Electrical checks come first | Inspect the fuse and relay before suspecting the pump to avoid costly misdiagnosis. |
| Voltage drop reveals hidden faults | A ground-circuit drop above 0.1V mimics pump failure and is frequently overlooked. |
| Pressure testing confirms mechanical faults | A fuel pressure gauge distinguishes pump wear, regulator failure, and filter restrictions. |
| No safe pump bypass exists | Extended cranking or bypass attempts cause additional damage and create fire risk. |
| Document every symptom | Recording sounds, voltage readings, and conditions cuts technician diagnostic time. |
What we’ve learned from years of fuel system calls
At Premier Fleet Repair, the most expensive fuel system repairs we see are not caused by pump failure. They are caused by skipped steps. A driver or a well-meaning roadside helper replaces the pump without checking the fuse, the relay, or the ground circuit. The new pump goes in, the vehicle still does not start, and now there is a return to square one with a depleted budget.
The electrical-to-mechanical sequence exists for a reason. A high-pitched whine from the tank is often an early sign of internal pump wear or clogging, not silence. Drivers who know that catch the problem earlier and spend less. Drivers who wait for a complete no-start and then skip straight to pump replacement spend the most.
Patience and a multimeter solve more fuel problems than any part does. The fleet vehicle inspection checklist we use at Premier Fleet Repair builds this exact sequence into every preventive maintenance visit, because catching a weak pump at 60 PSI is far cheaper than diagnosing a no-start on the side of a highway.
— Premier Fleet Repair
Premier Fleet Repair brings the diagnosis to you
Stranded roadside with a fuel system fault and no test equipment? Premier Fleet Repair dispatches experienced mobile technicians directly to your location across Hillsborough, Pinellas, Pasco, Manatee, and Polk Counties. No tow required.
Our technicians arrive with professional-grade fuel pressure gauges, multimeters, and vehicle-specific wiring data to run the full electrical-to-mechanical diagnostic sequence on-site. That means accurate fault identification on the first visit, not a parts-swapping guessing game. For fleet operators, fast mobile fleet repair keeps vehicles earning instead of sitting. Contact Premier Fleet Repair for same-day fuel system diagnosis and repair.
FAQ
What causes a car to not start due to fuel system issues?
Failed fuel pumps cause about 12% of no-start conditions, but dead batteries and crankshaft sensor faults are more common culprits. Always rule out electrical faults before assuming a fuel delivery problem.
How do I know if my fuel pump relay is bad?
Swap the fuel pump relay with an identical relay from the same fuse box, such as the horn relay. If the pump activates after the swap, the original relay was faulty.
What PSI should my fuel system hold?
Port-injected vehicles typically maintain 30–80 PSI at the fuel rail, depending on the manufacturer spec. Readings below spec during cranking indicate pump wear or a clogged filter.
Can I fix a bad fuel pump on the side of the road?
No. There is no safe or reliable roadside repair for a failed electric fuel pump. The correct action is to complete electrical checks, document your findings, and contact a professional technician.
What are early warning signs of fuel pump failure?
Hesitation, surging, or choking under load are common early indicators that a pump is weakening. A high-pitched whine from the fuel tank also signals internal wear before complete failure occurs.
